Projects

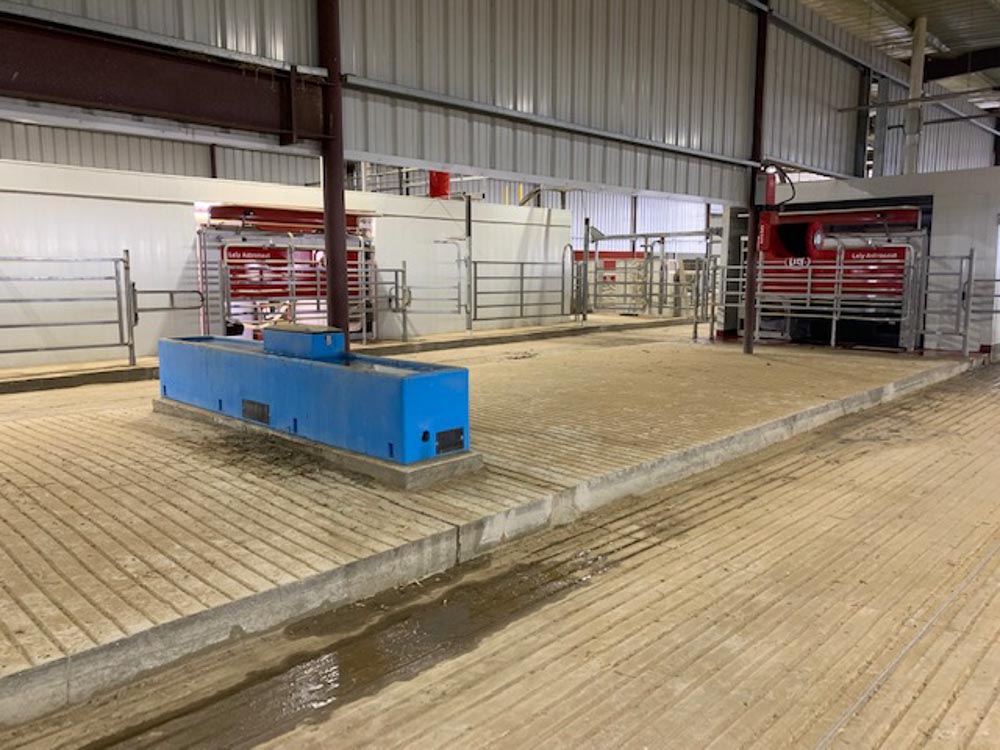

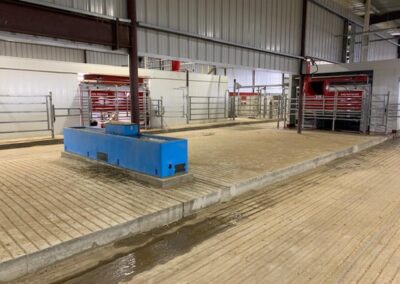

Icon Holsteins Dairy – Kersey, CO

  • Built in 2018

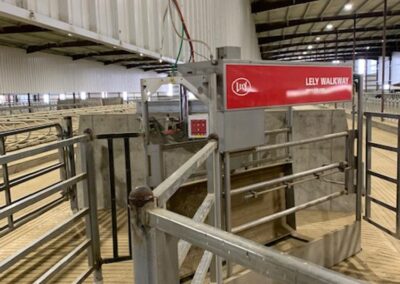

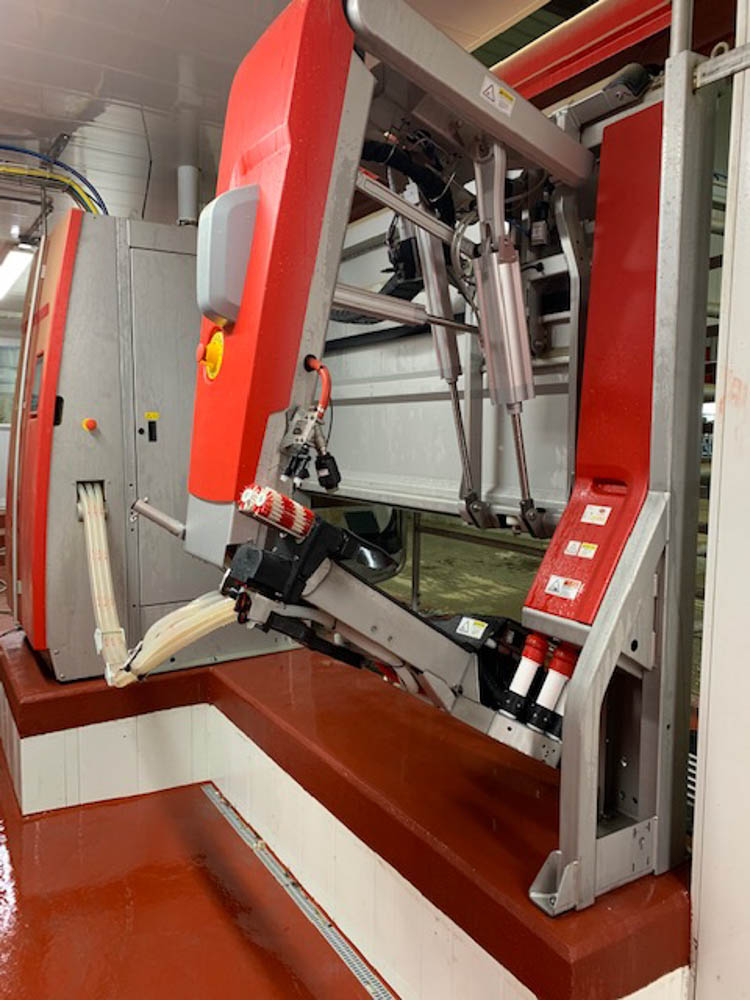

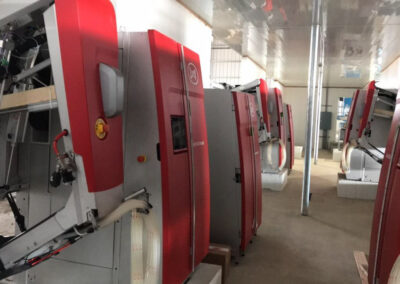

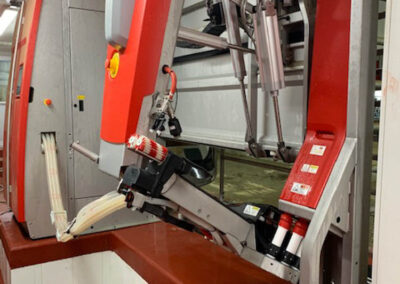

  • 24 Lely Astronaut A5 Robotic Dairy

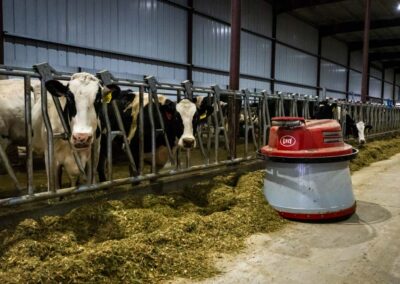

  • Lely Juno feed pusher
  • Free stall housing
  • Cooling:

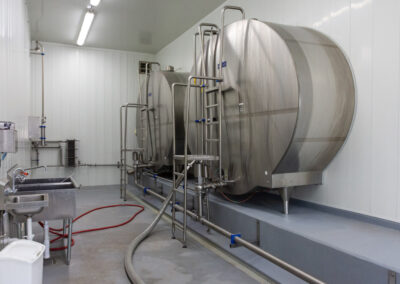

    • 2- 8,000-gallon horizontal Mueller silos
    • Mueller Nimbus 3 tank control
    • 3- Mueller Fre-heaters
    • 2- Mueller Accu-therm plate coolers (52 plate)

Deer Valley Dairy – Fort Morgan, CO

  • Phase I completed in 2015 / Phase II completed in 2018
  • Double 50 Parallel Turner GEA Parlor
  • Free stall housing
  • Ventilation – VES
  • Cooling:
    • 4 – 20,000-gallon vertical Mueller silos
    • 2 – Mueller Avalanche chiller 90-15
    • 10- 15 hp Mueller discus condensing units
    • Mueller Accu-therm plate cooler, custom closed looped condensing water system (130 plate)
    • Mueller Accu-therm ported plate cooler (174 plate)
    • 5 – Mueller Fre-heaters
    • Mueller Century ITM 4 tank control
  • Waste Management:
    • Primary/Secondary System. Manure flush dairy. Roller press by GEA. Centrisys Centrifuge CS21, 200 gpm. Vaughan pumps/agitator. 75% moisture of solids. Stackable product.

Marrs Milky Way Dairy – Ault, CO

  • Built in 2018

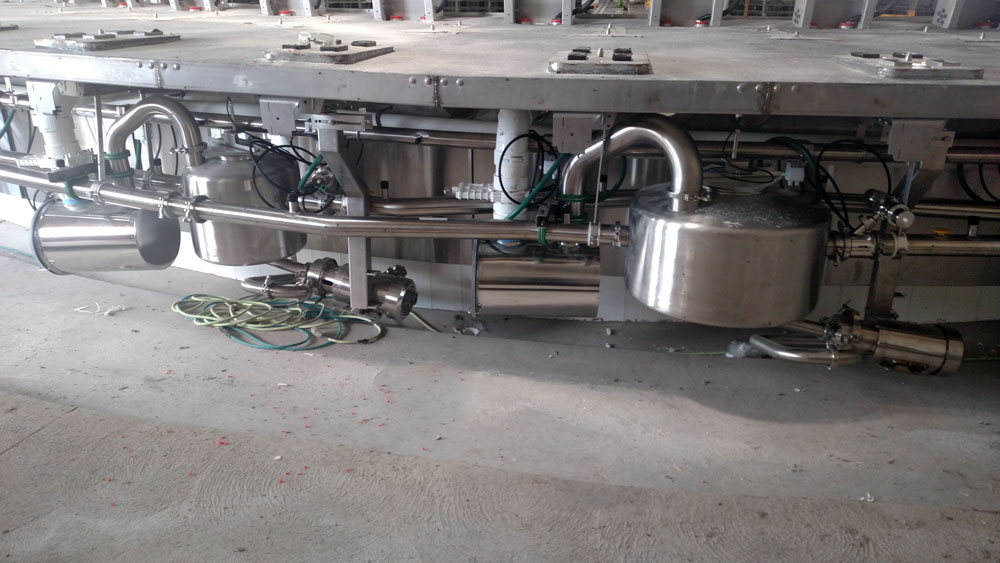

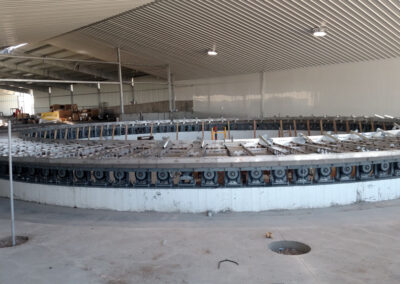

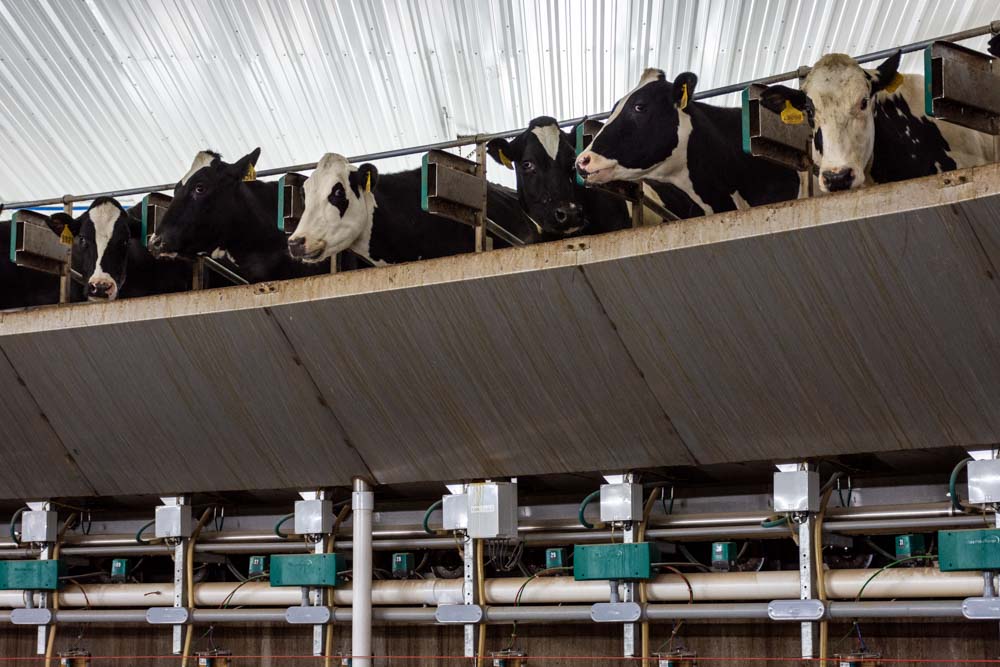

  • 60 Stall GEA Dairy ProQ Robotic Rotary
  • Free stall Housing
  • Ventilation
    • VES – High pressure fog rings on intake fans
    • Phason AutoFlex Connect System
  • Cooling:
    • 2 – 20,000-gallon vertical Mueller silos
    • Mueller Stratus control
    • Mueller LS60-15 chiller
    • 3 – Mueller discus water cooled compressors
    • 2 – Mueller Fre-heaters
    • Mueller Accu-therm ported plate cooler (96 plate)
  • Waste Management:
    • Scrape dairy with Mensch gathered manure scraper, pit to GEA piston pump to GEA roller press. 80% moisture to solids roller press. Stackable solid.

    TV Dairy – Fort Lupton, CO

    • Remodeled in 2017
    • Double 28 Parallel GEA Parlor
    • Ventilation – VES
    • Cooling:
      • 1 – 30,000 gallon vertical Mueller silo
      • Mueller LS chiller 40-10
      • 6,000 gallon Mueller cooling tank
      • Mueller Century ITM Multi-tank control



    Hunter Ridge – Eaton, CO

    • Built in 2012
    • Double 50 Parallel Parlor

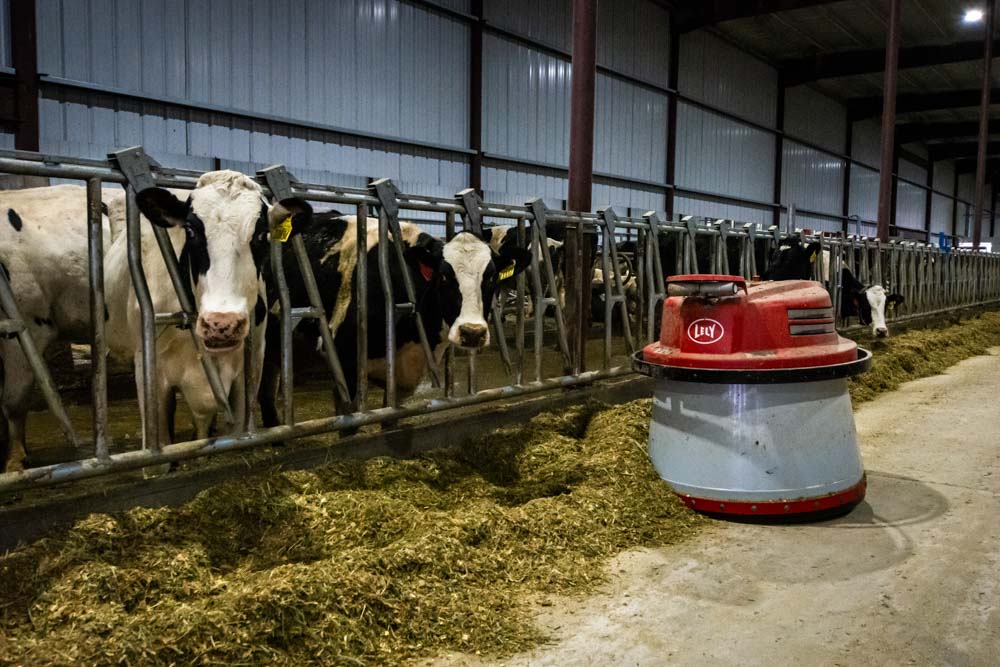

    • Lely Juno feed pushers – First dairy in the State of Colorado to install robotic feed system
    • Free stall housing
    • Ventilation – VES
    • Cooling:

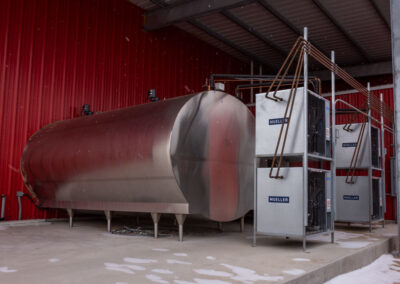

      • 2 – 16,500 gallon horizontal silos
      • Mueller Avalanche chiller 90-15
      • 6- 15 hp Mueller discus condensing units
      • 4- Mueller Fre-heaters
      • Mueller Accu-therm plate cooler (130 plate)
      • Mueller Century ITM 4 tank control

    Aurora High Ridge – Gill, CO

    • Built in 2016
    • Double 25 Parallel Turner Parlor
    • Beco equipment
    • Free stall housing
    • Ventilation:
      • VES
      • Phason AutoFlex System
    • Cooling:
      • Mueller LS45-15 chiller
      • 3 – 15 hp Mueller discus condensing units
      • 3 – Mueller Fre-heaters
      • Mueller Accu-therm ported plate cooler (96 plate)
    • Waste Management:
      • Scrape Dairy with Lowen Honey-Vac Scraper. Stackable solids.

    Palo Verde – Lasalle, CO

    • Built in 2013
    • 72 Stall Rotary GEA AutoRotor PerFormer
    • Free stall Housing
    • VES Ventiliation
    • Cooling:
    • 20,000-gallon vertical silo
    • Mueller Avalanche chiller 90-15 with water cooled 15 hp discuss compressors
    • 4- Mueller water heaters
    • Mueller Accu-therm plate cooler (130 plate)
    • Mueller Century ITM 4 tank control

    Wildcat Dairy – Ft Morgan, CO

    • 5,000 cow dairy with freestall housing
    • Two double 50 parallel parlors
    • Schaefer ventilation
    • Mueller cooling
    • Flush system
    • Waste Management: Primary/Secondary System. Manure flush dairy. Roller press by GEA. Screen by Agpro. Centrisys Centrifuge CS26, 400 gpm. Vaughan pumps/agitator. 75% moisture of solids. Stackable product.

    Quail Ridge Dairy – Ft. Morgan, CO

    • 4,500 cow dairy
    • Double 50 parlor with dual basements
    • Single cow return via front cross over
    • Magnum 90i stalls
    • Mueller cooling
    • Houle manure alley scrapers in free stall barn
    • Houle manure solid separation

    Long Meadow – Greeley, CO

    • Built in 2013
    • Double 35 Parallel GEA Parlor
    • Free stall Housing
    • Ventilation – VES
    • Cooling:
      • 2 – 10,000- gallon vertical Mueller silos
      • GEA Custom pro-chiller package complete
      • 4 – GEA Super Heaters
      • GEA T28 ported plate cooler
      • Mueller Century ITM 4 tank control
